Microstrip is a type of electrical transmission line that can be fabricated using printed circuit board technology. It is used to convey microwave-frequency signals.

This application allows the user to calculate the electrical properties of a microstrip line in a given geometry produced from set materials (analysis), or to determine the geometry necessary to obey the given requirements for an impedance (synthesis).

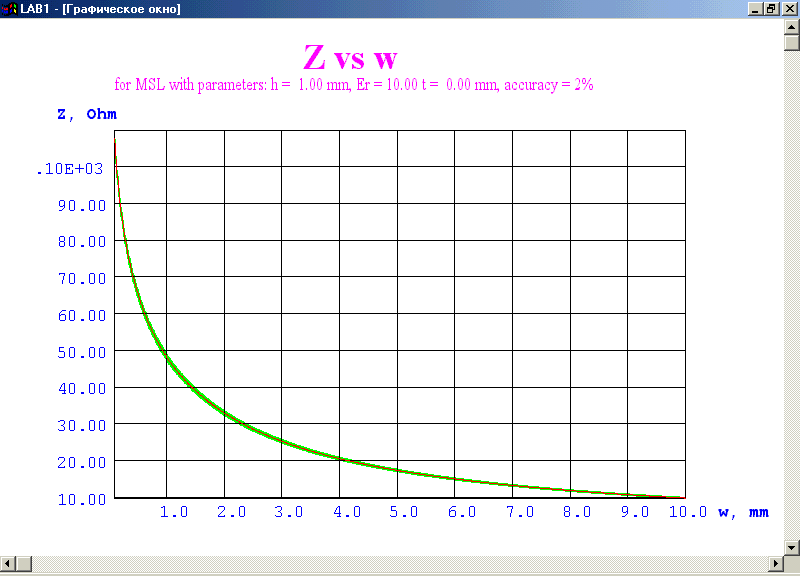

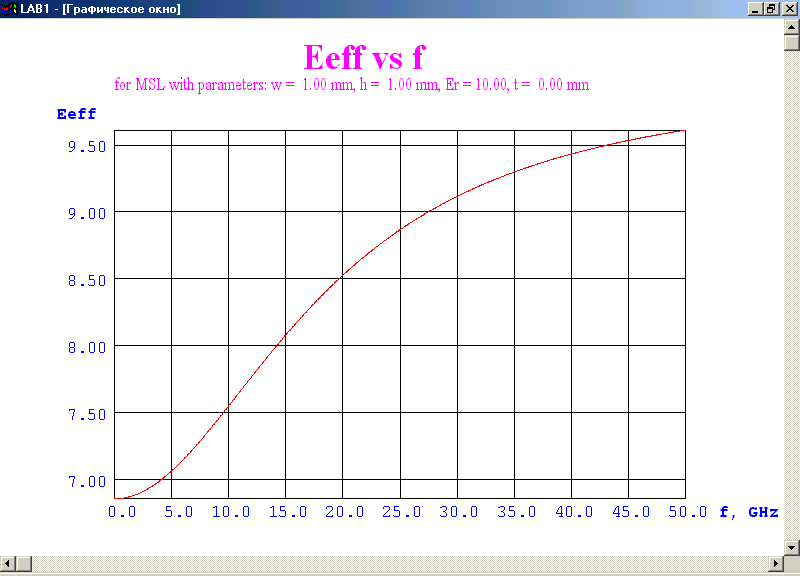

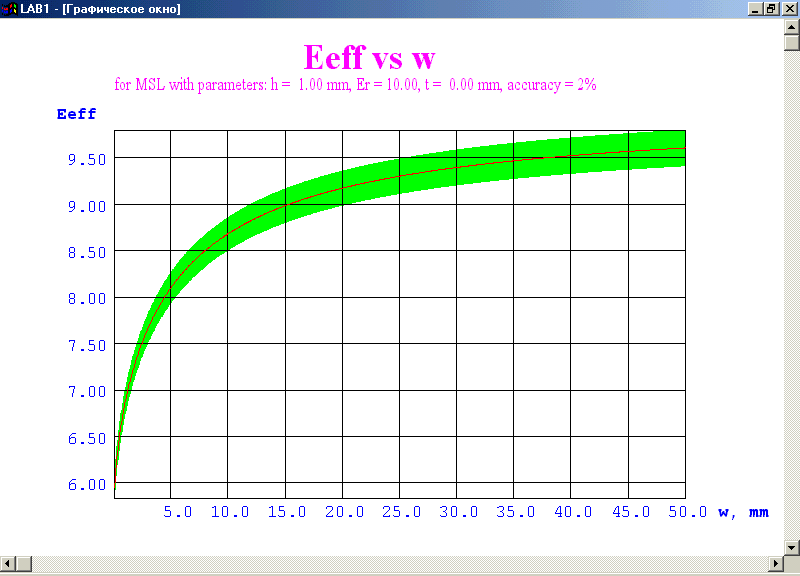

This application not only calculates the value of a parameter, but also shows the dependence of that value versus frequency, width of the conductor, or height of the dielectric substrate.

Languages: Fortran

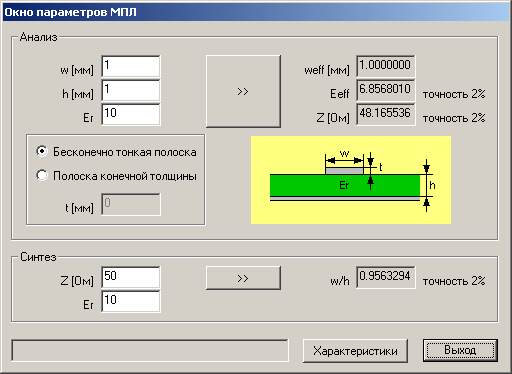

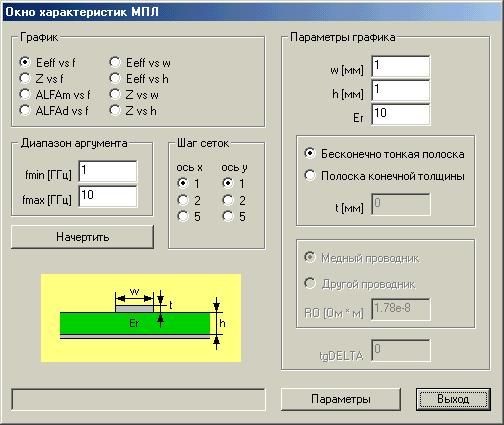

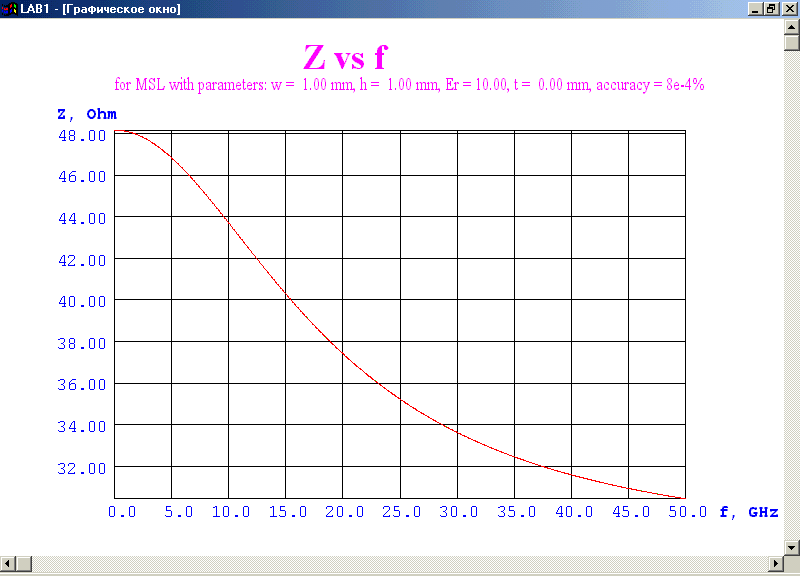

Microstrip Line Analysis (1) Microstrip Line Analysis (2)
